Quick facts
Completely free and Open Source (including firmware)
Programs PIC10-12-16-18-24, dsPIC30-33, EEPROMs type 24xxxx (I2C), 25xxx (SPI), 93xx6 (MicroWire), some ATMEL micros, communicates with generic I2C & SPI devices (see supported devices)
Can work as ICD debugger
USB 2.0 Full Speed interface, HID class (same as keyboards, mice, etc.)
Self powered
Doesn't need drivers
Built from easy to find components (estimated cost ~10€)
Hardware generated timings for maximum speed and reliability (writes a 18F2550 in 15s, 8s under Linux)
Doesn't saturate your CPU and doesn't suffer when other programs are running
Open source control programs for Linux and Windows
Este en un clon funcional del programador Pickit2, programa toda la gama de PICS y los AVRS.
El programa aplicación para la PC funciona bajo: Windows XP, Vista (32 Bits) , Linux y MAC. El código fuente del programa así también como del firmware del PIC son libres.
El programa de aplicación : http://sourceforge.net/projects/openprogrammer/files/Schematics/schem_1.7.1.zip
En este link también encontrarán la guía del programador, la versión normal y la versión profesional todo libre http://openprog.altervista.org.
Tambien se pude hacer PIC debugger, en la web encontrarán la guía.

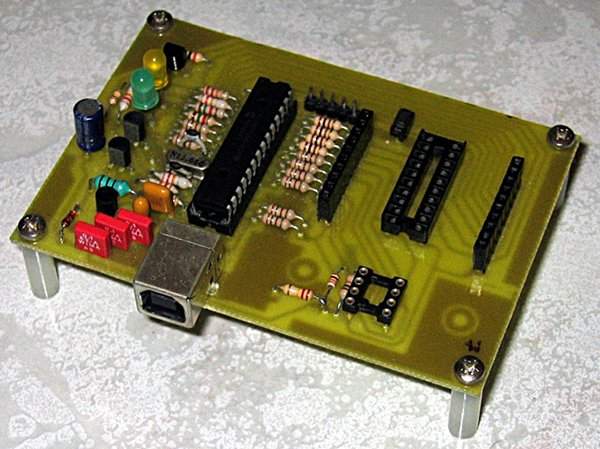

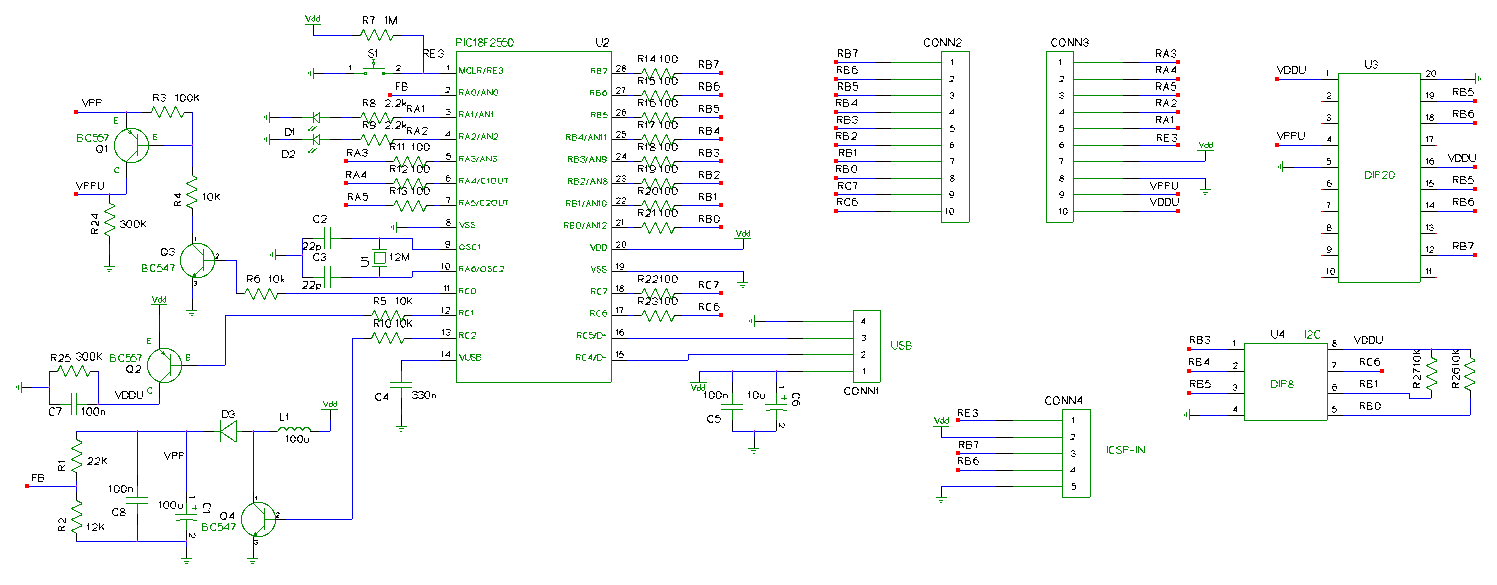

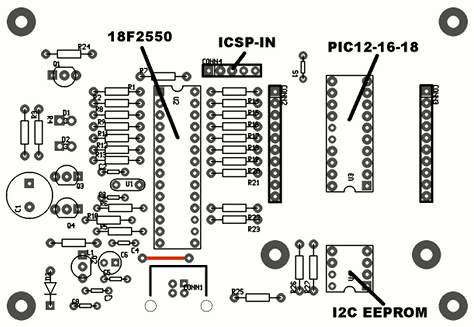

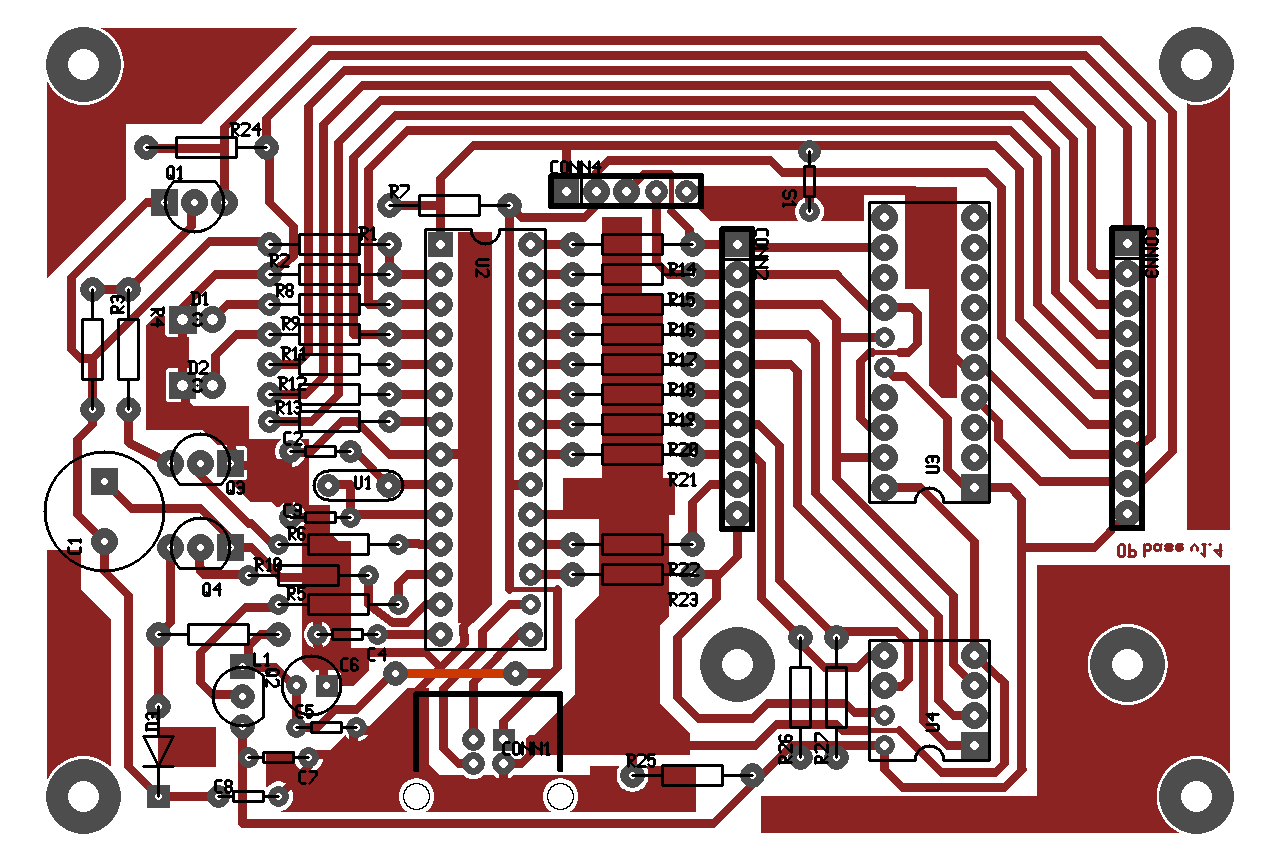

Diseño básico:
He grabado los siguientes PICS y avrs :
10F222, 12F508, 12F509, 12F1822, 12F1840, 16F627A, 16F628, 16F628A, 16F77, 16F777, 16F785, 16F818, 16F819, 16F83, 16F83A, 16C83, 16C83A, 16F84, 16C84, 16F84A, 16F916, 16F917, 16F946,16F1516,18F2320, 18F45J10, 18F45J11, 18F4515, 18F4520, 18F45K20, 18F4523, 18F4525, 18F4539, 24FJ128GA010, 24FJ32GA102, 24FJ32GA104, 24FJ32GB002, 24FJ32GB004, 24FJ64GA102, 24FJ64GA104, 24FJ64GB002, 24FJ64GB004, 24FJ64GB106, 24FJ64GB108, 24FJ64GB110, 24FJ128GA106, 24FJ128GB106, 24FJ128GA108, 24FJ128GB108, 24FJ128GA110,24HJ128GP502, 30F4012, 30F4013, 30F5011, 2416,93x56, 93x56A, 93S66.
AT90S1200, ATmega8, ATmega88, ATmega8515, ATmega8535, ATmega644A, ATmega1284,
ATtiny12, ATtiny44, ATtiny48, ATtiny461, ATtiny4313.
Trabajo en una tienda de distribución de componentes electrónicos.
Supported devices
I tried this programmer with a small number of devices (those I own plus some tested by other users) indicated in bold; the other devices are supported but not tested; however, considering that for every device family at least one has been verified, all of them should work without problems.
Please let me know if you verify operation with the untested devices.
Also contact me if you need other algorithms or code new ones by yourself.
Take notice:
LF series PICs are used exactly as the F ones;
Atmel AVR devices with varius suffixes are grouped together whenever the programming algorithm is exactly the same, eg. ATmega8 and ATmega8A;
EEPROM memories comprise all versions with VDDmax=5V, eg. 242LC56, 24AA256, etc.;
93x memories use 2 different algorithms, for the 93S series and for all the others, indicated with 93x (93xA have 8 bit organization).
devices supported for read and write:
10F200, 10F202, 10F204, 10F206, 10F220, 10F222,
12F508, 12F509, 12F510, 12F519, 12F609, 12F615, 12F629, 12F635, 12F675, 12F683,
12F1822, 12F1840,
16F505, 16F506, 16F526, 16F54, 16F610, 16F616, 16F627, 16F627A, 16F628, 16F628A, 16F630, 16F631, 16F636, 16F639, 16F648A, 16F676, 16F677, 16F684, 16F685, 16F687, 16F688, 16F689, 16F690, 16F716, 16F722, 16F722A, 16F723, 16F723A, 16F724, 16F726, 16F727, 16F73, 16F737, 16F74, 16F747, 16F76, 16F767, 16F77, 16F777, 16F785, 16F818, 16F819, 16F83, 16F83A, 16C83, 16C83A, 16F84, 16C84, 16F84A, 16C84A, 16F87, 16F870, 16F871, 16F872, 16F873, 16F873A, 16F874, 16F874A, 16F876, 16F876A, 16F877, 16F877A, 16F88, 16F882, 16F883, 16F884, 16F886, 16F887, 16F913, 16F914, 16F916, 16F917, 16F946,
16F1516, 16F1517, 16F1518, 16F1519, 16F1526, 16F1527, 16F1823, 16F1824, 16F1825, 16F1826, 16F1827, 16F1828, 16F1829, 16F1847, 16LF1902, 16LF1903, 16LF1904, 16LF1906, 16LF1907, 16F1933, 16F1934, 16F1936, 16F1937, 16F1938, 16F1939, 16F1946, 16F1947,
18F242, 18F248, 18F252, 18F258, 18F442, 18F448, 18F452, 18F458, 18F1220, 18F1230, 18F1320, 18F1330, 18F13K50, 18F14K50, 18F2220, 18F2221, 18F2320, 18F23K20, 18F2321, 18F2331, 18F2410, 18F24J10, 18F24J11, 18F2420, 18F24K20, 18F2423, 18F2431, 18F2439, 18F2450, 18F24J50, 18F2455, 18F2458, 18F2480, 18F2510, 18F25J10, 18F25J11, 18F2515, 18F25K20, 18F2520, 18F2523, 18F2525, 18F2539, 18F2550, 18F25J50, 18F2553, 18F2580, 18F2585, 18F2610, 18F26J11, 18F26J13, 18F2620, 18F26K20, 18F26J50, 18F26J53, 18F2680, 18F2682, 18F2685, 18F27J13, 18F27J53, 18F4220, 18F4221, 18F4320, 18F43K20, 18F4321, 18F4331, 18F4410, 18F44J10, 18F44J11, 18F4420, 18F44K20, 18F4423, 18F4431, 18F4439, 18F4450, 18F44J50, 18F4455, 18F4458, 18F4480, 18F4510, 18F45J10, 18F45J11, 18F4515, 18F4520, 18F45K20, 18F4523, 18F4525, 18F4539, 18F4550, 18F45J50, 18F4553, 18F4580, 18F4585, 18F4610, 18F46J11, 18F46J13, 18F4620, 18F46K20, 18F46J50, 18F46J53, 18F4680, 18F4682, 18F4685, 18F47J13, 18F47J53, 18F8722,
24F04KA200, 24F04KA201, 24F08KA101, 24F08KA102, 24F16KA101, 24F16KA102, 24FJ16GA002, 24FJ16GA004, 24FJ32GA002, 24FJ32GA004, 24FJ48GA002, 24FJ48GA004, 24FJ64GA002, 24FJ64GA004, 24FJ64GA006, 24FJ64GA008, 24FJ64GA010, 24FJ96GA006, 24FJ96GA008, 24FJ96GA010, 24FJ128GA006, 24FJ128GA008, 24FJ128GA010, 24FJ32GA102, 24FJ32GA104, 24FJ32GB002, 24FJ32GB004, 24FJ64GA102, 24FJ64GA104, 24FJ64GB002, 24FJ64GB004, 24FJ64GB106, 24FJ64GB108, 24FJ64GB110, 24FJ128GA106, 24FJ128GB106, 24FJ128GA108, 24FJ128GB108, 24FJ128GA110, 24FJ128GB110, 24FJ192GA106, 24FJ192GB106, 24FJ192GA108, 24FJ192GB108, 24FJ192GA110, 24FJ192GB110, 24FJ256GA106, 24FJ256GB106, 24FJ256GA108, 24FJ256GB108, 24FJ256GA110, 24FJ256GB110, 24HJ12GP201, 24HJ12GP202, 24HJ16GP304, 24HJ32GP202, 24HJ32GP204, 24HJ32GP302, 24HJ32GP304, 24HJ64GP202, 24HJ64GP204, 24HJ64GP206, 24HJ64GP210, 24HJ64GP502, 24HJ64GP504, 24HJ64GP506, 24HJ64GP510, 24HJ128GP202, 24HJ128GP204, 24HJ128GP206, 24HJ128GP210, 24HJ128GP306, 24HJ128GP310, 24HJ128GP502, 24HJ128GP504, 24HJ128GP506, 24HJ128GP510, 24HJ256GP206, 24HJ256GP210, 24HJ256GP610,
30F1010, 30F2010, 30F2011, 30F2020, 30F2023, 30F2012, 30F3010, 30F3011, 30F3012, 30F3013, 30F3014, 30F4011, 30F4012, 30F4013, 30F5011, 30F5013, 30F5015, 30F5016, 30F6010, 30F6011, 30F6012, 30F6013, 30F6014, 30F6015,
33FJ06GS101, 33FJ06GS102, 33FJ06GS202, 33FJ12GP201, 33FJ12GP202, 33FJ12MC201, 33FJ12MC202, 33FJ16GP304, 33FJ16GS402, 33FJ16GS404, 33FJ16GS502, 33FJ16GS504, 33FJ16MC304, 33FJ32GP202, 33FJ32GP204, 33FJ32GP302, 33FJ32GP304, 33FJ32GS406, 33FJ32GS606, 33FJ32GS608, 33FJ32GS610, 33FJ32MC202, 33FJ32MC204, 33FJ32MC302, 33FJ32MC304, 33FJ64GP202, 33FJ64GP204, 33FJ64GP206, 33FJ64GP306, 33FJ64GP310, 33FJ64GP706, 33FJ64GP708, 33FJ64GP710, 33FJ64GP802, 33FJ64GP804, 33FJ64GS406, 33FJ64GS606, 33FJ64GS608, 33FJ64GS610, 33FJ64MC202, 33FJ64MC204, 33FJ64MC506, 33FJ64MC508, 33FJ64MC510, 33FJ64MC706, 33FJ64MC710, 33FJ64MC802, 33FJ64MC804, 33FJ128GP202, 33FJ128GP204, 33FJ128GP206, 33FJ128GP306, 33FJ128GP310, 33FJ128GP706, 33FJ128GP708, 33FJ128GP710, 33FJ128GP802, 33FJ128GP804, 33FJ128MC202, 33FJ128MC204, 33FJ128MC506, 33FJ128MC510, 33FJ128MC706, 33FJ128MC708, 33FJ128MC710, 33FJ128MC802, 33FJ128MC804, 33FJ256GP506, 33FJ256GP510, 33FJ256GP710, 33FJ256MC510, 33FJ256MC710,
2400, 2401, 2402, 2404, 2408, 2416, 2432, 2464, 24128, 24256, 24512, 241024, 241025,
25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512, 251024,
93S46, 93x46, 93x46A, 93S56, 93x56, 93x56A, 93S66, 93x66, 93x66A, 93x76, 93x76A, 93x86, 93x86A,
AT90S1200, AT90S2313, AT90S8515, AT90S8535, ATmega48, ATmega8, ATmega88, ATmega8515, ATmega8535, ATmega16, ATmega164A, ATmega168, ATmega32, ATmega324A, ATmega328, ATmega64, ATmega644A, ATmega1284,
ATtiny12, ATtiny13, ATtiny24, ATtiny26, ATtiny261, ATtiny2313, ATtiny44, ATtiny48, ATtiny461, ATtiny4313, ATtiny84, ATtiny88, ATtiny861
devices supported for read only:
12C508, 12C508A, 12C509, 12C509A, 12C671, 12C672, 12CE673, 12CE674

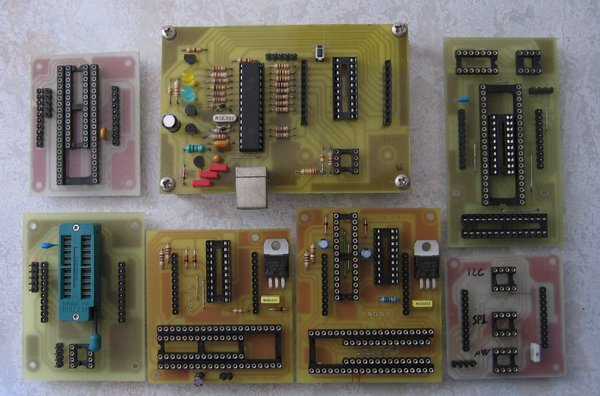

Important!! Don't use 3.3V devices without the 3.3V expansion boards, otherwise permanent damage may occur; the software verifies that such adapters are present before starting to program, but obviously you need to select the proper device; the 3.3V devices are:
16F1xxx,18FxxJxx,18FxxKxx,24Fxxx,24Hxxx,33Fxxx.
Also don't put any 24F-33F on the 30F socket, which works at 5V.
Para trabajar con MPlab y el sof para 18F2450 http://sourceforge.net/projects/openprogrammer/files/Firmware/Firmware_0.7.6.zip, archivo hex http://sourceforge.net/projects/openprogrammer/files/Firmware/OProg_v0.7.6.hex
firware http://sourceforge.net/projects/openprogrammer/files/Firmware/OProg2450_v0.7.6.hex
OPENPROG

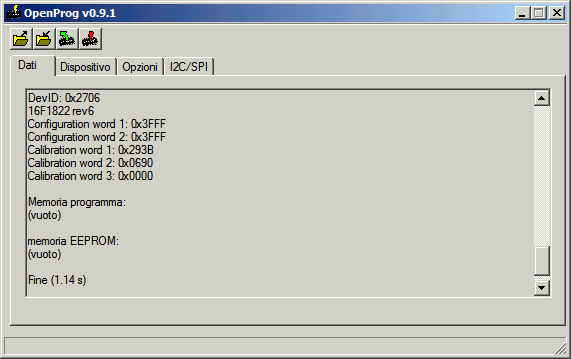

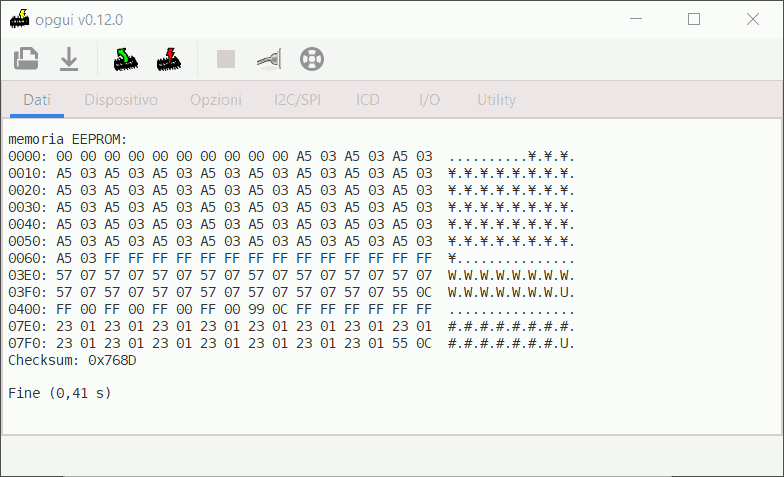

Graphical interface for Windows (v0.7.9)
PROGRAMA: http://sourceforge.net/projects/openprogrammer/files/Openprog/OpenProg.exe
SOURCE: http://sourceforge.net/projects/openprogrammer/files/Openprog/OpenProg_0.7.9.zip
Command-line utility (Linux and Windows, v0.7.9)
http://sourceforge.net/projects/openprogrammer/files/OP/op_0.7.9.tar.gz
GTK graphical interface for Windows and Linux (v0.7.9)
http://sourceforge.net/projects/openprogrammer/files/OPGUI/opgui_0.7.9.tar.gz
BAJAR TODO COMPLETO PCB, CIRCUITO, ETC:
http://sourceforge.net/projects/openprogrammer/files/Schematics/schem_1.7.1.zip
VERSION FULL PROFESIONAL
